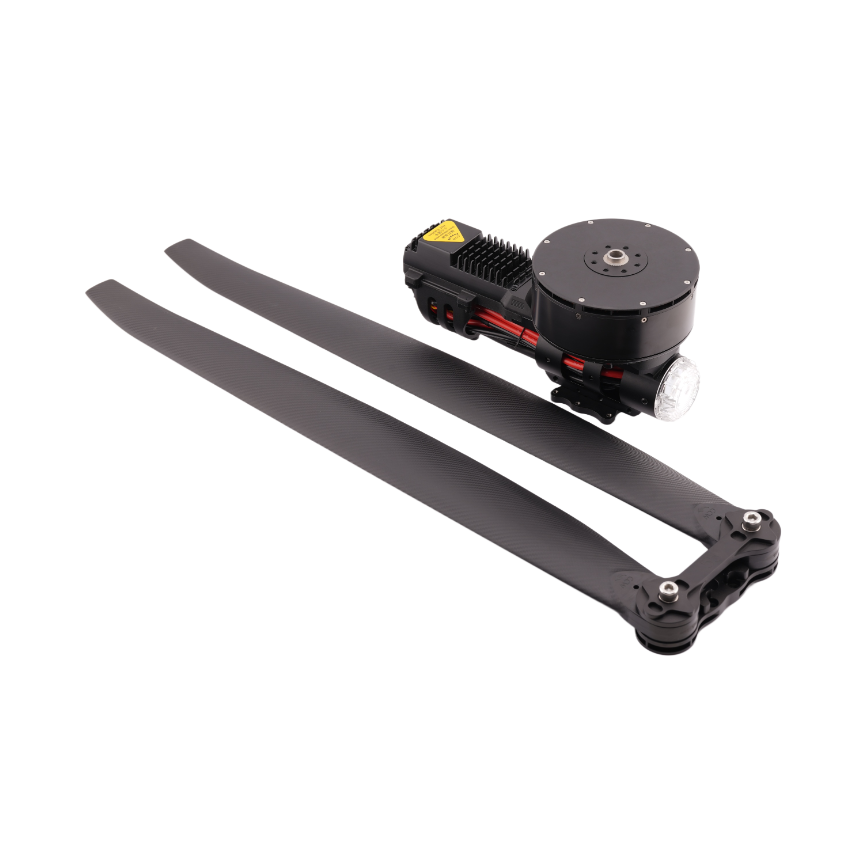

T50-60KV / 45KV Motor

Specification

T50-60KV Motor

• Dia. of Stator: Ф130mm
• Stator Length: 64.8mm
• Wire Length: custom
• Weight: 3700g
• Idle Current: 3.5A@25V
• KV Rating: 60
• INT. Resistance: 18.8mΩ
• Max Pull: 51Kgf
• Max Power: ≤8.9kW
• Max Current: 169A
• Voltage: 14S

 T50-45KV Motor

• Dia. of Stator: Ф130mm
• Stator Length: 64.8mm
• Wire Length: custom
• Weight: 3850g
• Idle Current: 2.6A@25V
• KV Rating: 45
• INT. Resistance: 37.2mΩ
• Max Pull: 49Kgf
• Max Power: ≤9.1kW
• Max Current: 129A
• Voltage: 18S
