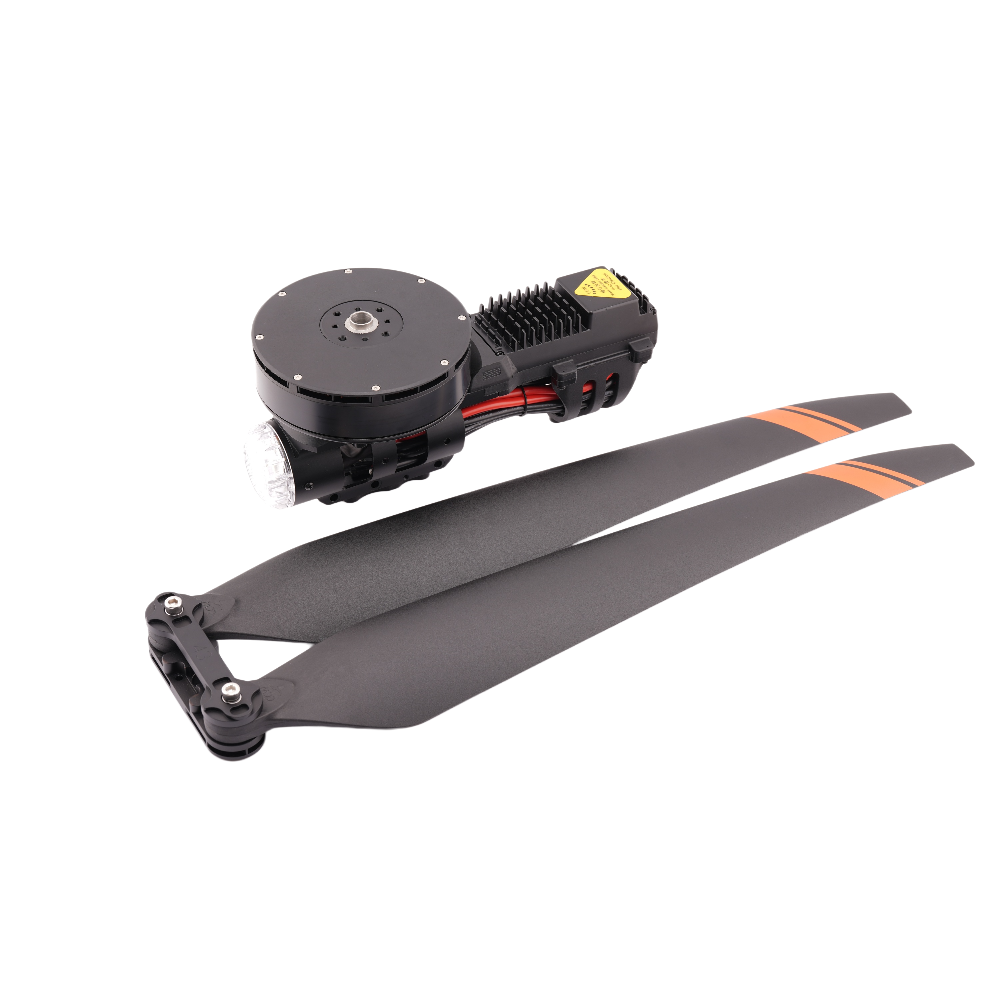

T30-57KV / 76KV Motor

Specification

T30-57KV Motor

• Dia. of Stator: Ф130mm
• Stator Length: 49.5mm
• Wire Length: custom
• Weight: 2400g
• Idle Current: 2.6A@25V
• KV Rating: 57
• INT. Resistance: 42.2mΩ
• Max Pull: 37Kgf
• Max Power: ≤7.4kW
• Max Current: 103A
• Voltage: 18S

T30-76KV

• Dia. of Stator: Ф130mm

• Stator Length: 49.5mm

• Wire Length: custom

• Weight: 2370g
• Idle Current: 3.3A@25V
• KV Rating: 76
• INT. Resistance: 27.4mΩ
• Max Pull: 37Kgf
• Max Power: ≤7.2kW
• Max Current: 134A
• Voltage: 14S
