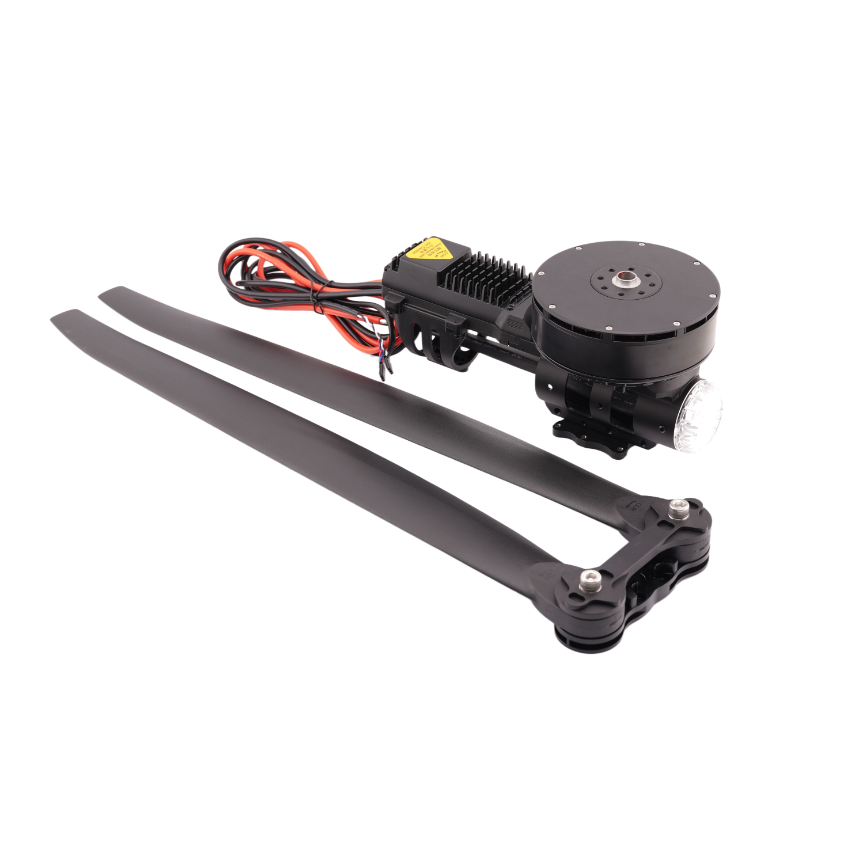

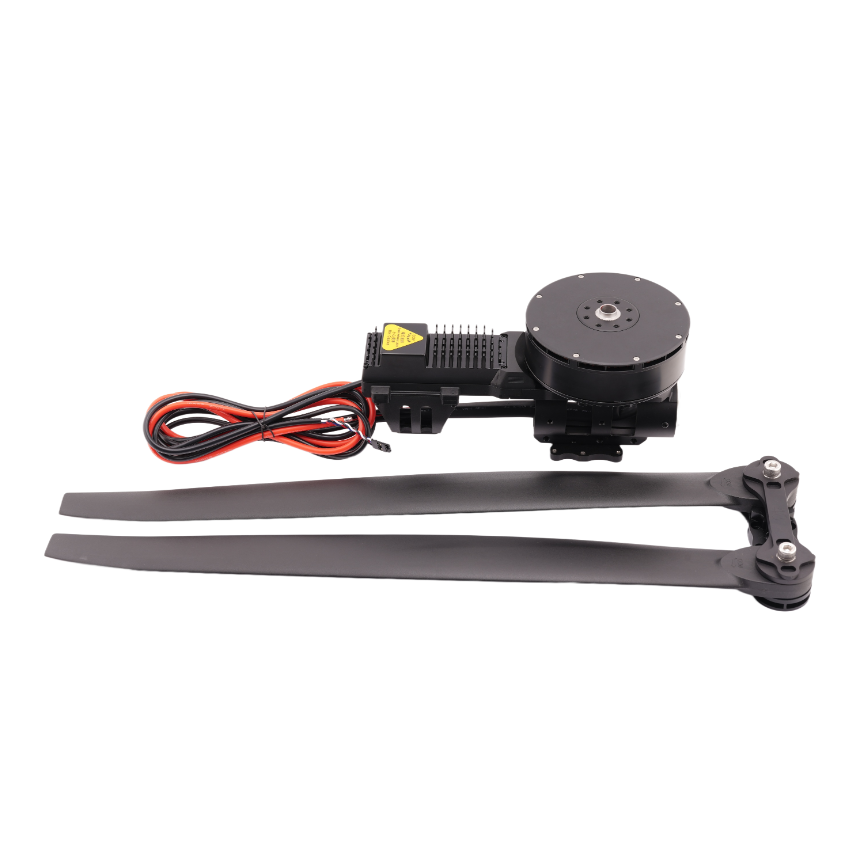

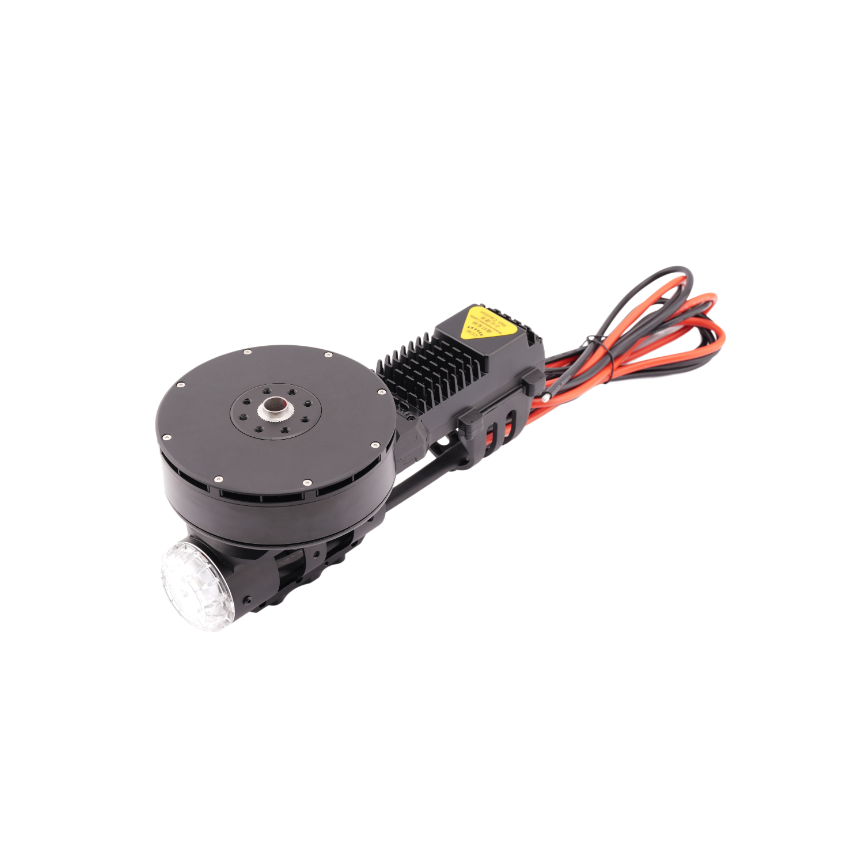

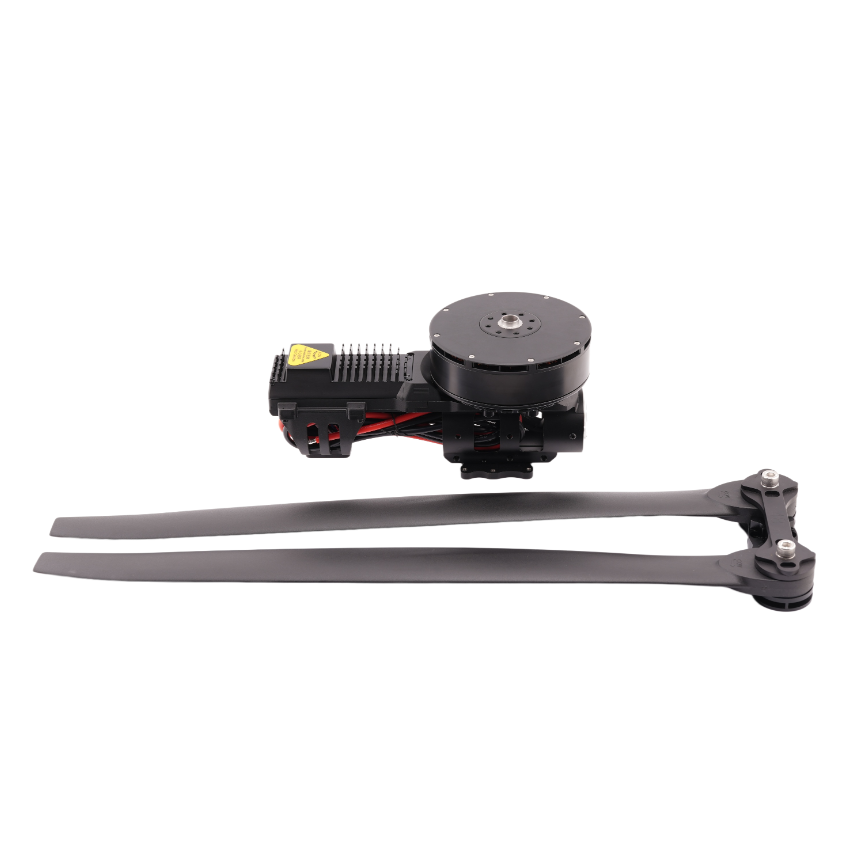

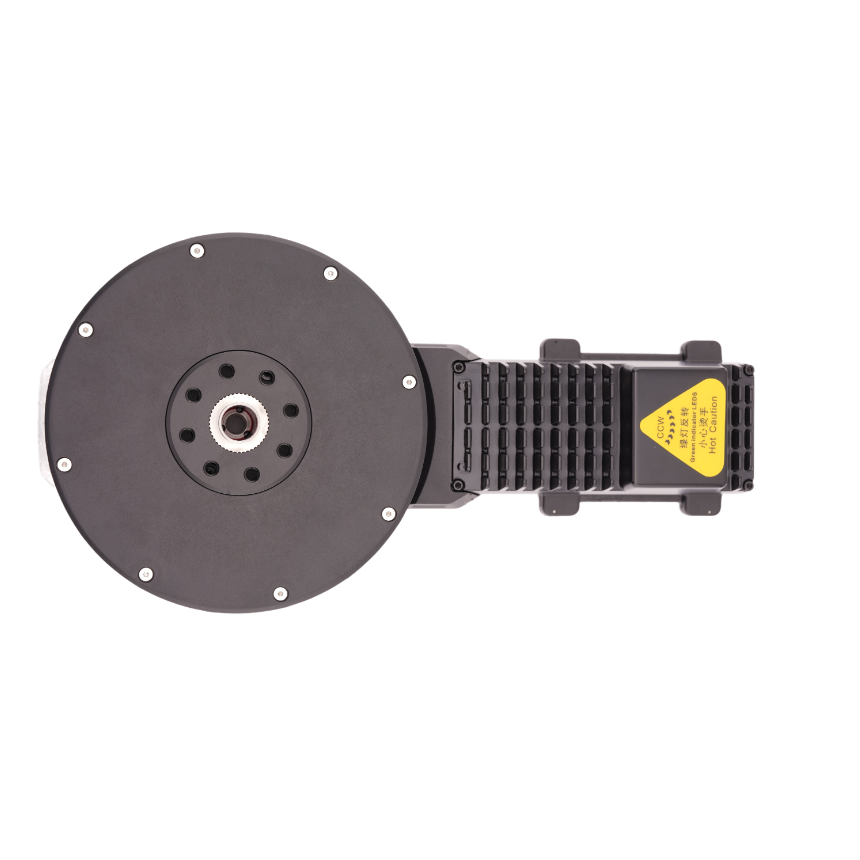

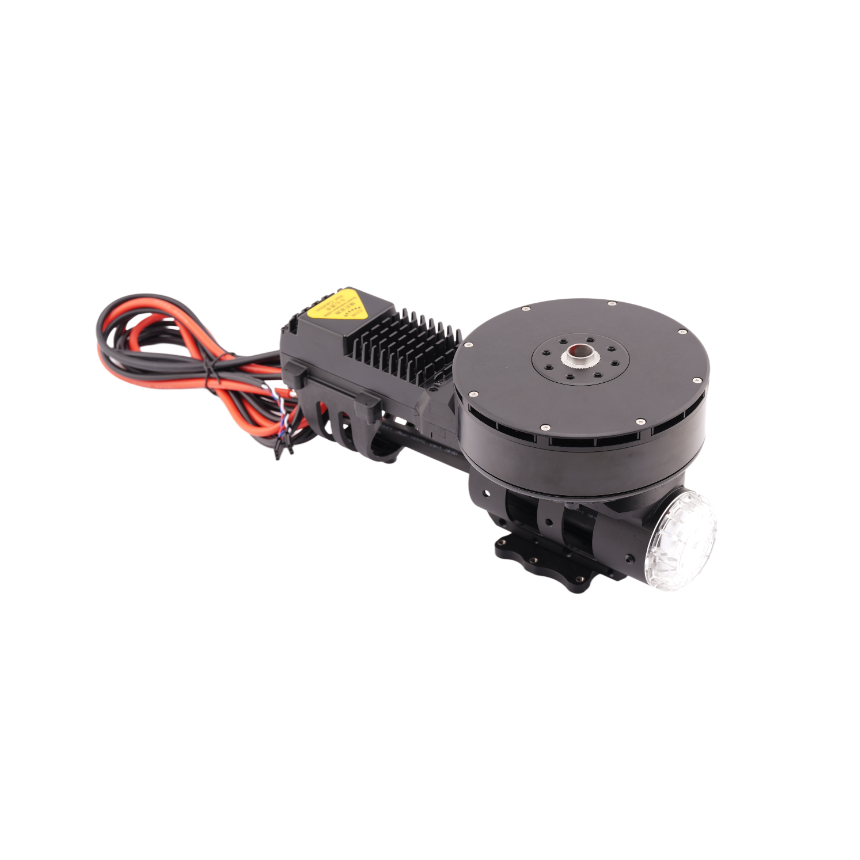

T40-74KV / 59KV Motor

T40-74KV / 59KV Motor

KV Rating

Specification

T40-74KV Motor

  • Dia. of Stator: Ф130mm
  • Stator Length: 53.5mm
  • Wire Length: custom
  • Weight: 2690g
  • Idle Current: 3.2A@25V
  • KV Rating: 74
  • INT. Resistance: 20.2mΩ
  • Max Pull: 43Kgf
  • Max Power: ≤8.8kW
  • Max Current: 166A
  • Voltage: 14S

T40-59KV Motor

  • Dia. of Stator: Ф130mm
  • Stator Length: 53.5mm
  • Wire Length: custom
  • Weight: 2700g
  • Idle Current: 3.0A@25V
  • KV Rating: 59
  • INT. Resistance: 33.5mΩ
  • Max Pull: 47Kgf
  • Max Power: ≤9.6kW
  • Max Current: 135A
  • Voltage: 18S
