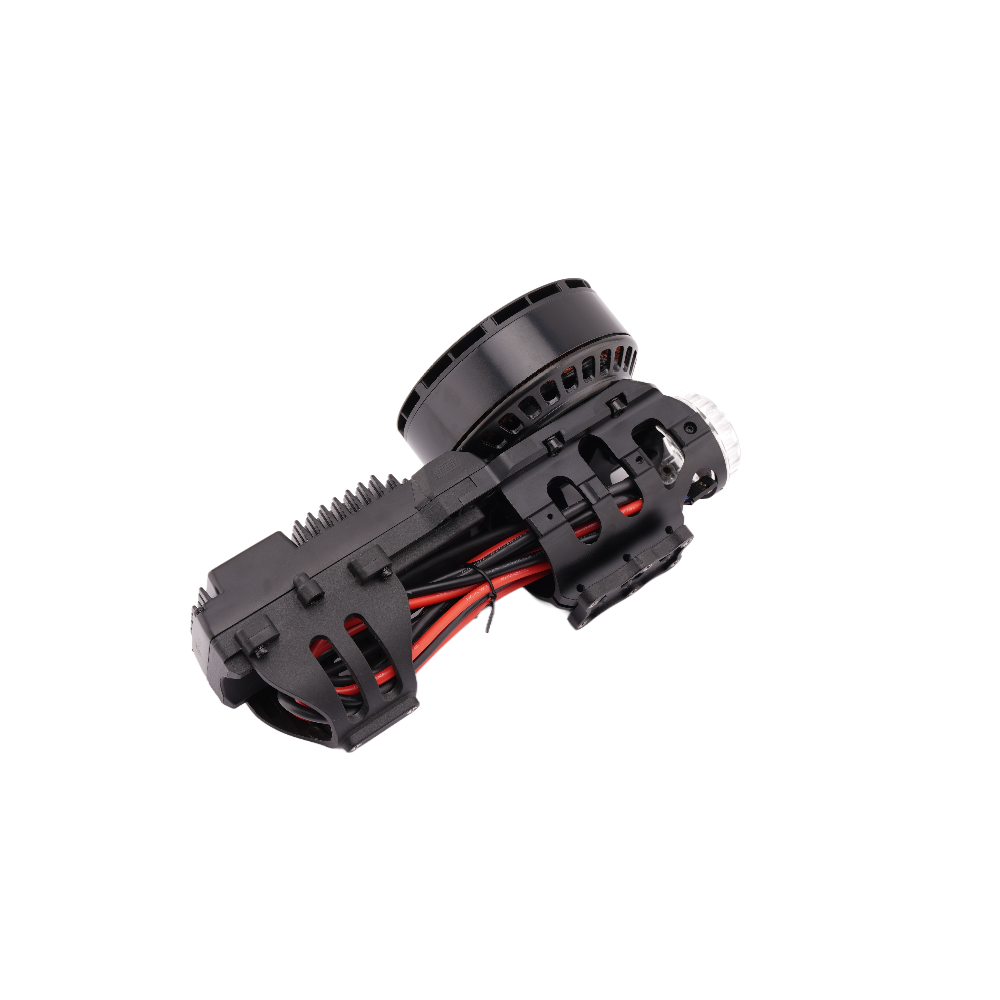

T20-80KV / 65KV Motor

T20-80KV / 65KV Motor

KV Rating

Specification

T20-80KV Motor

  • Dia. of Stator: Ф109mm
  • Stator Length: 50mm
  • Wire Length: custom
  • Weight: 1890g
  • Idle Current: 3.0A@25V
  • KV Rating: 80
  • INT. Resistance: 42.4mΩ
  • Max Pull: 33Kgf
  • Max Power: ≤6.5kW
  • Max Current: 121A
  • Voltage: 14S

T20-65KV Motor

  • Dia. of Stator: Ф109mm
  • Stator Length: 50mm
  • Wire Length: custom
  • Weight: 1944g
  • Idle Current: 1.9A@25V
  • KV Rating: 65
  • INT. Resistance: 70.5mΩ
  • Max Pull: 34Kgf
  • Max Power: ≤7.1kW
  • Max Current: 110A
  • Voltage: 18S
